A6282
16-Channel Constant-Current LED Driver

Features
•16 constant-current outputs, up to 50 mA each
•LED output voltage up to 12 V
•3.0 to 5.5 V logic supply range
•Schmitt trigger inputs for improved noise immunity
•Power-On Reset (POR), all register bits = 0
•Low-power CMOS logic and latches
•High data input rate: 30 MHz
•Output current accuracy: between channels
< ±3% and between ICs ±7%, over the full operating temperature range
•Internal UVLO and thermal shutdown (TSD) circuitry

Applications
•Monocolor, multicolor, or full-color LED display
•Monocolor, multicolor, or full-color LED signboard
•Display backlighting
•Multicolor LED lighting

Description
The A6282 device is designed for LED display applications. This CMOS device includes an input shift register, accompanying data latches, and 16 MOS constant current sink drivers.
The CMOS shift registers and latches allow direct interfacing with microprocessor-based systems. With a 3.3 or 5 V logic supply, typical serial data input rates can reach up to 30 MHz. The LED drive current level can be set by a single external resistor, selected by the application designer. A serial data output permits cascading of multiple devices in applications requiring additional drive lines.
The A6282 is available in two 24-terminal packages: QFN (package ES) and TSSOP (LP), which have an exposed thermal pad. Both packages are lead (Pb) free with 100% matte tin leadframe plating.

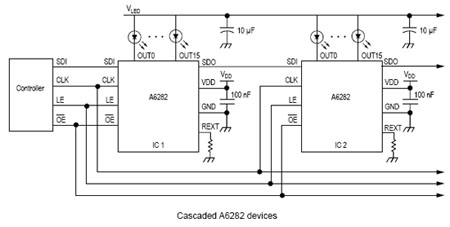

Typical Applications

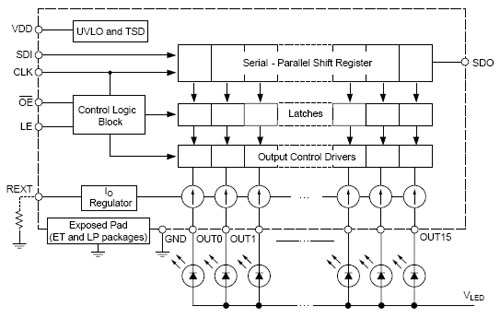

Functional Block Diagram
