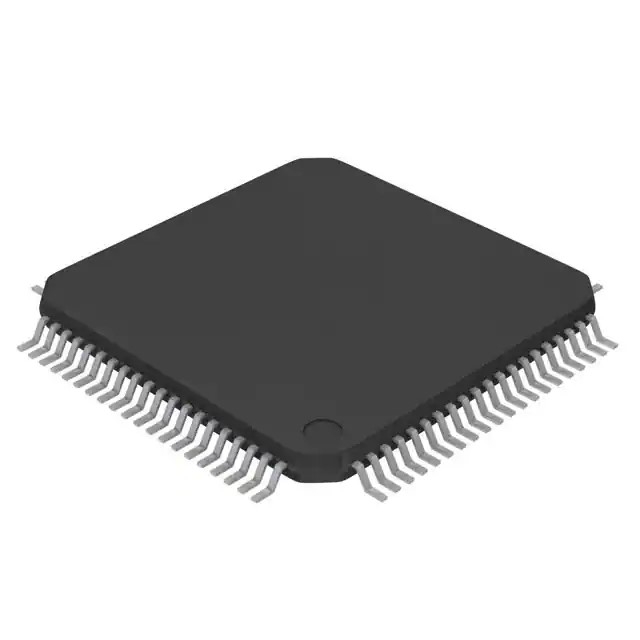

PIC18F8680-I/PT microcontroller
| 型号： | PIC18F8680-I/PT microcontroller | 更新时间： | 2022-01-14 14:45:08 |
| 厂家名称： | 配套产品 | 浏览量： | 446人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 80-TQFP | ||
| 包装： | 90 per tray | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - Microcontrollers | |
| Mfr | Microchip Technology |
| Series | PIC® 18F |
| Package | Tray |
| Part Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 40MHz |
| Connectivity | CANbus, EBI/EMI, I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, LVD, POR, PWM, WDT |
| Number of I/O | 68 |
| Program Memory Size | 64KB (32K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 3.25K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.2V ~ 5.5V |
| Data Converters | A/D 16x10b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 80-TQFP |
| Supplier Device Package | 80-TQFP (12x12) |
| Base Product Number | PIC18F8680 |
